Physical movement
Each moving unit extends from the display plane to turn a flat video surface into a changing three-dimensional form.
Indoor 250 cabinet with moving display units.
← All products
SS03 / 3D KINETIC SCREEN
Kinetic LED Display
Digital content. Physical depth.
SS03 combines LED video with independently moving display units. Controlled forward and backward movement changes the physical surface of the screen, creating depth, waves and patterns in sync with the content.
150–600 mmModel-specific stroke
P1.94 / P4 / P10Indoor & outdoor options
DMX512Motion control protocol
Front / rearMaintenance access
01 / DISPLAY & MOTION
Bring movement
into the image.
Synchronised content
The control system coordinates video and mechanical movement. Content generation software supports visual editing of the intended effect.
DMX512 control
An open DMX512 control protocol supports integration with the project control workflow.
Linear guide structure
Industrial linear guides support the moving units, with the unit gap specified separately for each model.
Modular cabinets
The two indoor models use 500 × 500 mm die-cast aluminum cabinets. Outdoor models use larger metal-profile formats.
Front & rear service
Maintenance access can be planned from the front or rear to suit the installation.
02 / MODEL RANGE
Four models.
Different scales of movement.
Choose indoor GOB cabinets or an outdoor model, then match the moving-unit format and stroke to the installation.

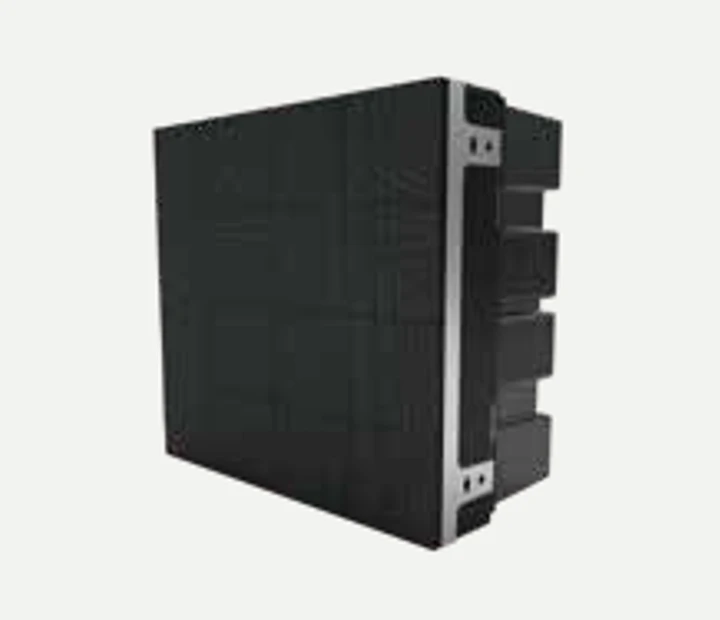

INDOOR / P1.94
125-150-I
150 mm maximum stroke
16 (4 × 4) moving units / cabinet

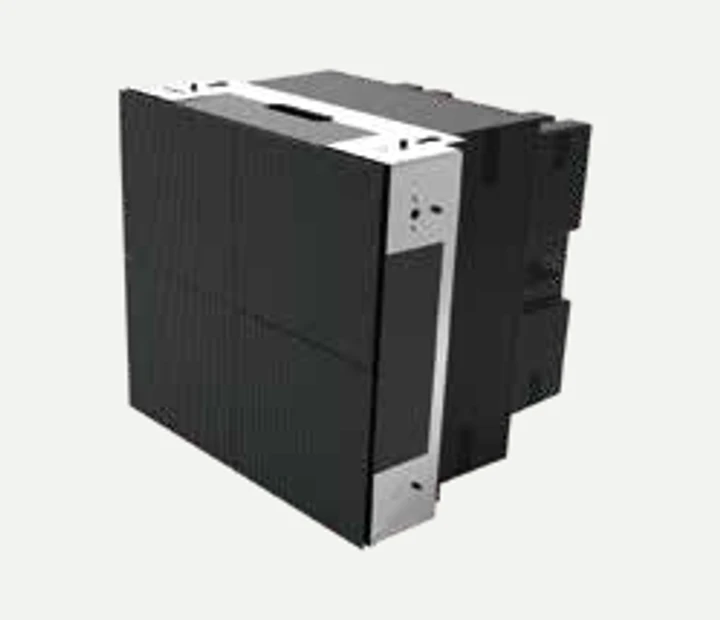

INDOOR / P1.94
250-250-I
250 mm maximum stroke
4 (2 × 2) moving units / cabinet

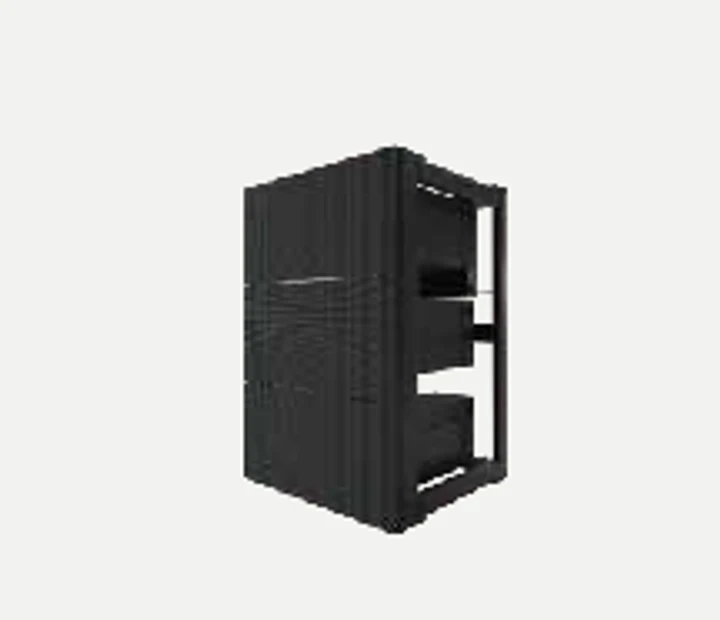

OUTDOOR / P4
250-300-O
300 mm maximum stroke
6 (2 × 3) moving units / cabinet

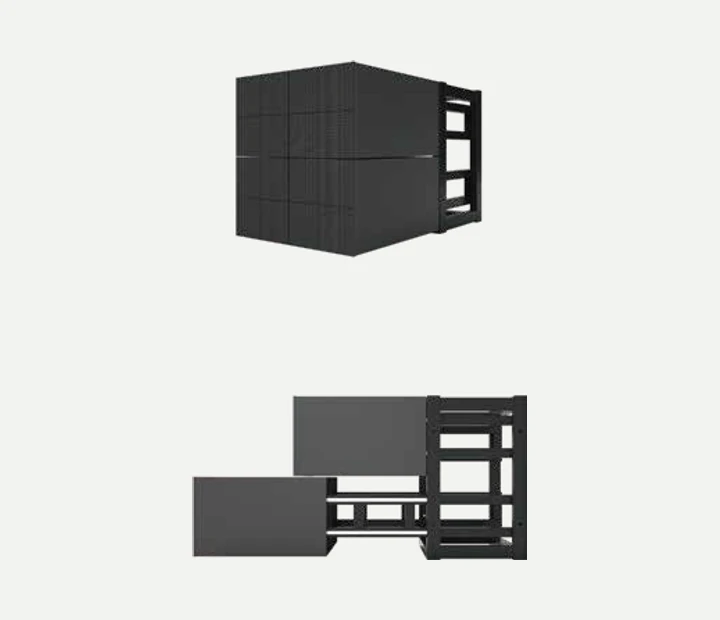

OUTDOOR / P10
500-600-O
600 mm maximum stroke
4 (2 × 2) moving units / cabinet
03 / TECHNICAL SPECIFICATIONS
Compare the configuration.
Dimensions, movement and power values are model-specific. Cabinet dimensions below are width × height × depth.
Scroll horizontally to compare all four models
| Specification | 125-150-IIndoor | 250-250-IIndoor | 250-300-OOutdoor | 500-600-OOutdoor |
|---|---|---|---|---|
| Environment | Indoor | Indoor | Outdoor | Outdoor |
| Pixel pitch | P1.94 | P1.94 | P4 | P10 |
| LED surface | GOB | GOB | Outdoor waterproof LED | Outdoor waterproof LED |
| Display unit (W × H) | 124.2 × 124.2 mm | 248.4 × 248.4 mm | 250 × 250 mm | 495 × 495 mm |
| Unit resolution (W × H) | 64 × 64 px | 128 × 128 px | 64 × 64 px | 48 × 48 px |
| Gap between units | 0.8 ± 0.3 mm | 1.6 ± 0.5 mm | 1.6 ± 0.5 mm | 5 ± 1.5 mm |
| Cabinet (W × H × D) | 500 × 500 × 270 mm | 500 × 500 × 440 mm | 503.2 × 754.8 × 450 mm | 1000 × 1000 × 1430 mm |
| Moving units / cabinet | 16 (4 × 4) | 4 (2 × 2) | 6 (2 × 3) | 4 (2 × 2) |
| Cabinet structure | Die-cast aluminum | Die-cast aluminum | Metal profile | Metal profile |
| Cabinet weight | 23 kg | 24 kg | 46 kg | 171 kg |
| Max. forward stroke | 150 mm | 250 mm | 300 mm | 600 mm |
| Max. forward speed | 600 mm/s | 600 mm/s | 600 mm/s | 800 mm/s |
| Min. forward/back time | 0.5 s | 0.6 s | 0.8 s | 1.5 s |
| Brightness | ≥650 cd/m² | ≥650 cd/m² | ≥6000 cd/m² | ≥6000 cd/m² |
| Cabinet rated power | 320 W | 220 W | 500 W | 1500 W |
| Display weight per m² | 92 kg/m² | 96 kg/m² | 121 kg/m² | 171 kg/m² |
| Distribution power allowance | 1280 W/m² | 1100 W/m² | 1500 W/m² | 1875 W/m² |
| Operating temperature | 0–40°C (frost-free) | 0–40°C (frost-free) | −10–60°C | −10–60°C |
Final screen layout, control configuration, supporting structure and electrical distribution are confirmed for the project.
04 / PROJECT PLANNING
Plan the motion as part of the display.
Select the moving-unit size and stroke around the audience distance, content and available installation depth. The supporting structure, motion envelope, maintenance access and electrical distribution are part of the system layout.
10 × 10Moving-unit layout
25Indoor 250 cabinets
6.25 m²Example display area
For the indoor 250 model, a 10 × 10 moving-unit layout forms an approximately 2.5 × 2.5 m display: 100 moving units across 25 cabinets. This is a catalogue planning reference for the visual effect.
- Retail & Flagship Stores
- Architecture & Digital Signage
- Live Events & Staging
- Exhibitions & Museums
PROJECT SUPPORT
Define your
kinetic display.
Share the screen dimensions, viewing distance, environment and proposed motion effect. We will help define the model and system layout.
